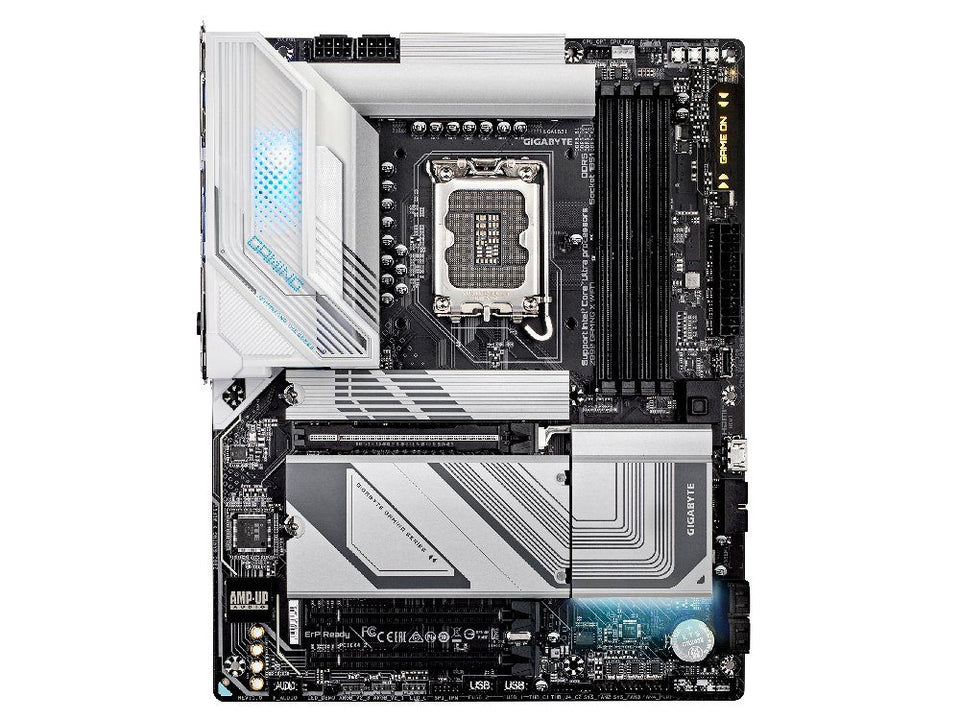

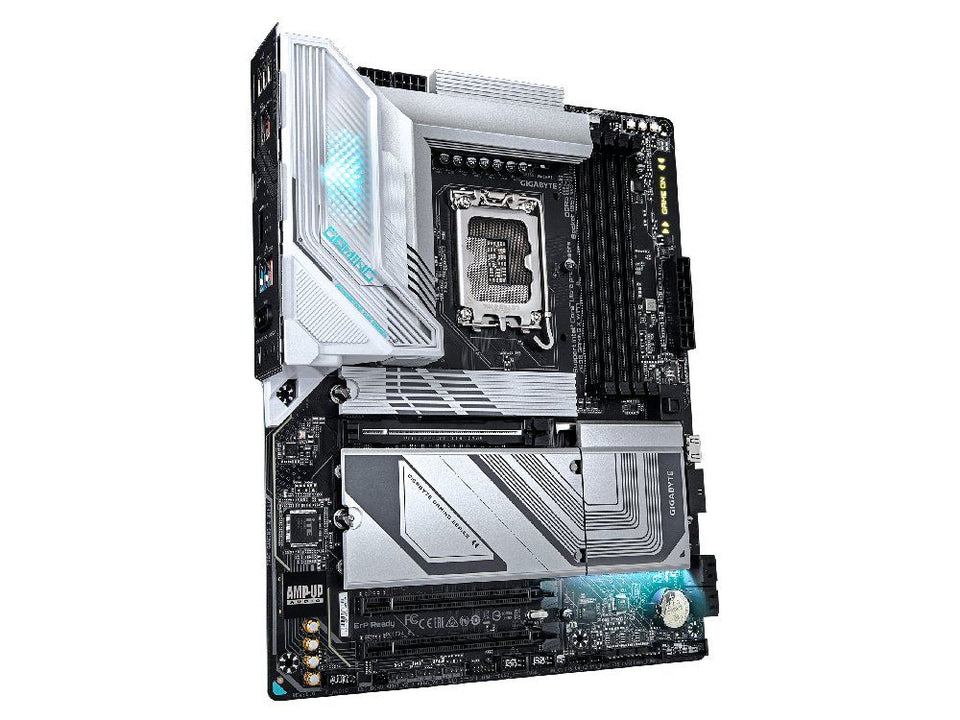

(3-YEAR WARRANTY) Gigabyte Z890 GAMING X WIFI7 DDR5 LGA1851 ATX Motherboard
by Mike PC AU
Quick Specifications
Manufacturer Specifications
|
CPU
|
LGA1851 socket: Support for Intel® Core™ Ultra Processors
|
| L3 cache varies with CPU | |
| * Please refer to "CPU Support List" for more information. | |
|
Chipset
|
Intel® Z890 Express Chipset
|
|
Memory
|
Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
|
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
| - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version | |
| - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| * Support for HDMI 1.4 version | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to 3 displays at the same time | |
|
Audio
|
Realtek® Audio CODEC
|
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
|
LAN
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
Wireless Communication module
|
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
|
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) | |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.4 | |
| - Support for 11be 160MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
|
Expansion Slots
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) | |
|
Storage Interface
|
CPU:
|
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
|
USB
|
CPU:
|
| - 1 x USB4® USB Type-C® port on the back panel | |
| Chipset: | |
| - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
| - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+2 USB 2.0 Hubs: | |
| - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
|
Internal I/O Connectors
|
1 x 24-pin ATX main power connector
|
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt™ add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| (Note) Actual support may vary by CPU. | |
|

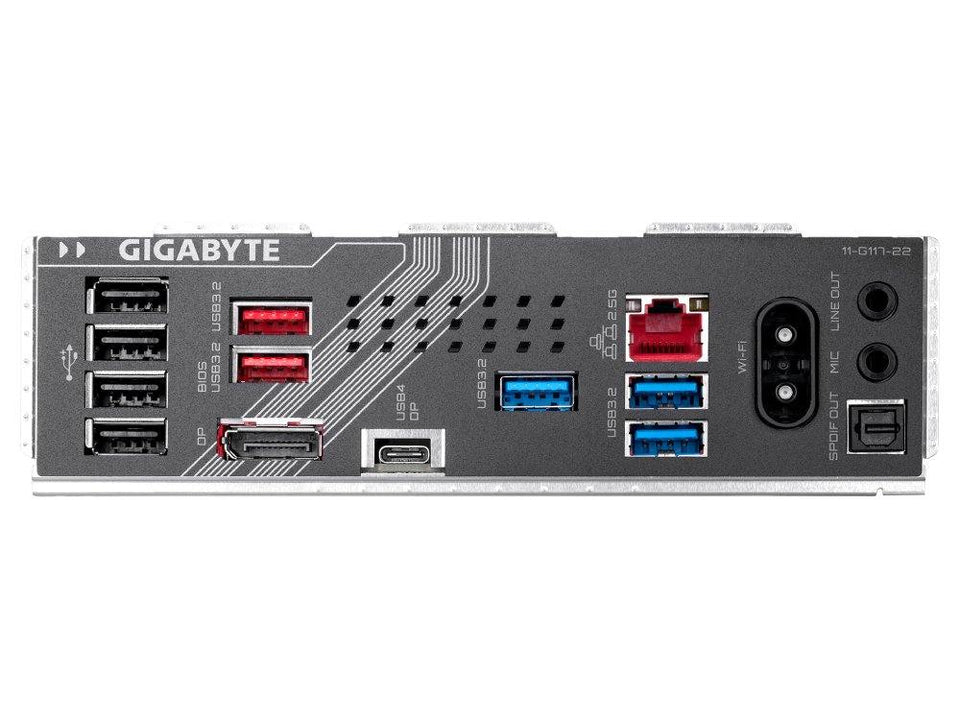

Back Panel Connectors
|
1 x USB4® USB Type-C® port (DisplayPort (Note))
|
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x DisplayPort (Note) | |
| 2 x antenna connectors (2T2R) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| (Note) Actual support may vary by CPU. | |
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
Voltage detection
|
| Temperature detection | |
| Fan speed detection | |
| ater cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
|
BIOS
|
1 x 256 Mbit flash
|
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features
|
Support for GIGABYTE Control Center (GCC)
|
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
|
Bundled Software
|
Norton® Internet Security (OEM version)
|
| LAN bandwidth management software | |
|
Operating System
|
Support for Windows 11 64-bit
|
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
